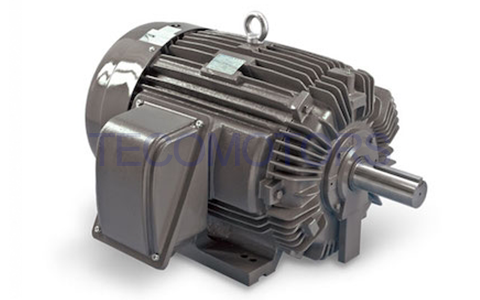

NEMA VFD Dust Explosion Proof Motor Rating：

• Type：TECO-Westinghouse

• Model：AEHHXU/AEHHXF/AEUHXF

• Horsepower：1-150Hp

• R.P.M. (Syn.)：3600/1800/1200R.P.M.

• Frequency：60Hz

• Voltages：230V/460V(available on 208V), only 460V for more than 150 Hp

• Protection Enclosure：Totally Enclosed ( IP 55 ) .

• Explosion-proof grade：

  Class I, Division I, Group D

  Class II, Groups E, F, G; Temp Code T2D/T3B

• UL Certificate：E84575

• CSA Certificate：64671

• Design Standards：NEMA Premium Efficient Design

• Time Duty：Continuous. S1 , S.F.：1.15 .

• Insulation class：Class F

• Temperature rise grade：B

• Relative Humidity：Less Than 90%RH ( Non-Condensation ) .

• Altitude：Less Than 1,000 Meters .

• Ambient Temperature：（-20℃~40℃ . ）

NEMA VFD Dust Explosion Proof Motor Application：

• grain elevator

• water pump

• blower

• Applications where explosive atmospheres are present

• Applications where explosive dust/particles are present
